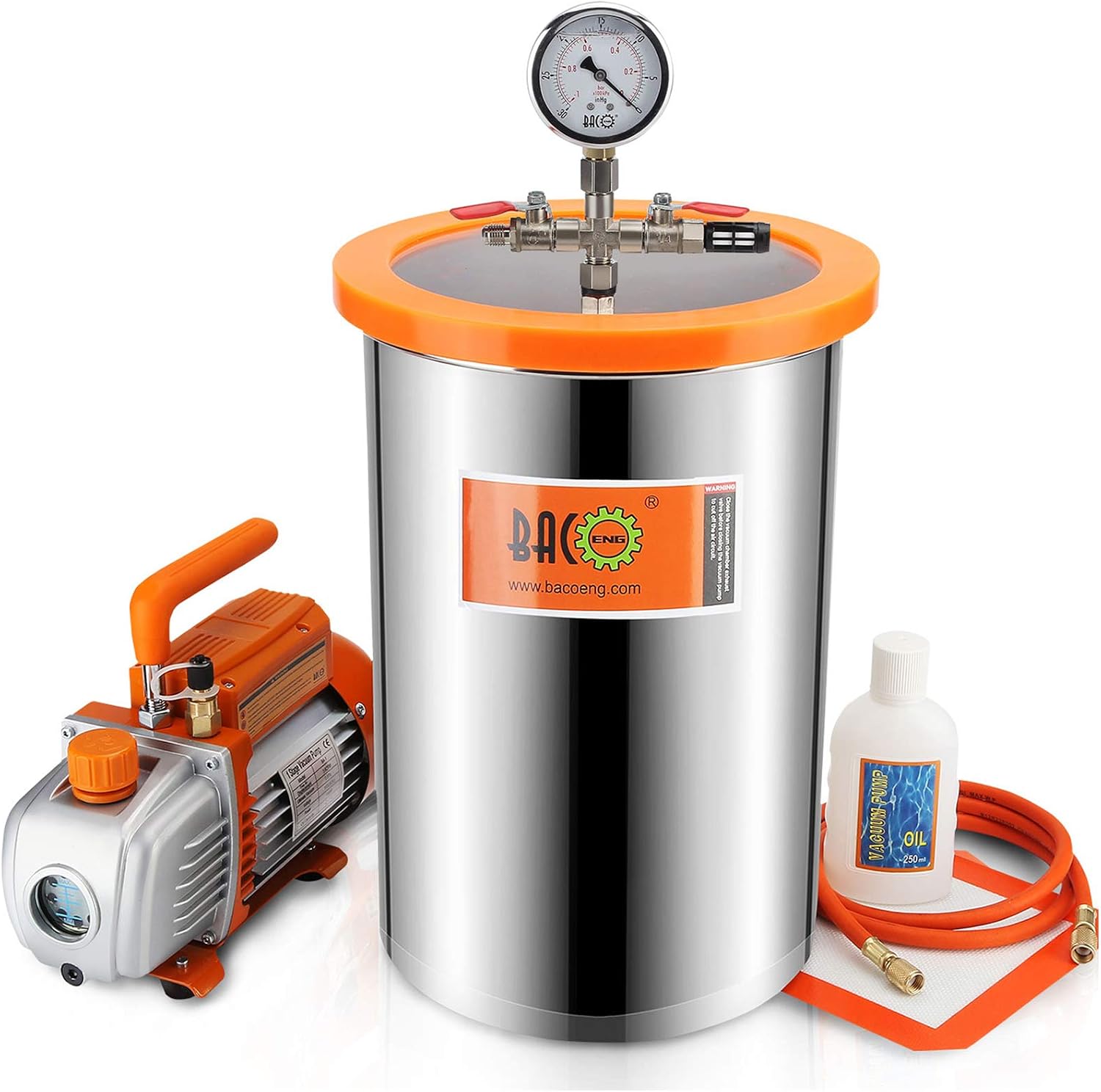

BACOENG 19 Liter Vacuum Chamber Kit with 3 CFM Single Stage Vacuum Pump HVAC
Item #:
8583300
TTD 1313
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from UK
In stock
Imported from UK store
QTY:
Only 13 items left in stock.
Order now and get it around Thursday, July 02
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
High efficiency and Low Noise Decibels
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step Up Voltage Transformer required for using electronics products of UK store (230 V). Recommended power converters Buy Now.
What Stands Out
High Capacity
The 19-liter vacuum chamber is perfect for large projects, allowing users to efficiently degas materials or infuse resins while accommodating larger samples compared to smaller models.
Efficient Pump
The 3 CFM single-stage vacuum pump ensures quick evacuation of air from the chamber, significantly reducing wait times for professionals needing reliable performance in HVAC applications.
Complete Kit
This all-in-one kit includes everything needed for immediate use, making it ideal for both DIY enthusiasts and HVAC professionals seeking convenience without needing to purchase additional components.
Product Details
- Compatible with various solvents, not suitable for stabilizing with specific solvents like cactus juice, gator venom, minwax, alcohol, ethanol, and acrylic based monomers or polymers
- Equipped with silicone gasket for long-lasting use, capable of enduring over 10,000 uses without deterioration
- Offers higher flow rate and ultimate vacuum, surpassing similar products in the market
- Chamber size: 9 inches in diameter and 6 inches in height, with a capacity of 1.5 gallons; includes SS base, acrylic lid, silicone gasket, vacuum gauge, air manifold with valves, and a 5ft hose
- Vacuum pump operates at 220V 50HZ with 1/4 HP single stage 3CFM power, producing an ultimate vacuum of 0.8 Pa; features 1/4 inch flare intake fitting and 250 ml oil capacity
Product Technical Details
| Manufacturer | Baco Engineering |
| Part Number | BA1-P0306 |
| Package Dimensions | 46 x 33.5 x 32.2 cm; 10.49 kg |
| Item model number | BA1-P0306 |
| Size | Pump with 19L Chamber |
| Colour | Silver |
| Material | acryl, glas, kunststoff |
| Item Package Quantity | 1 |
| Batteries included? | No |
| Batteries Required? | No |
| Item Weight | 10.5 kg |
| Date First Available | 9 Aug. 2017 |
Who Should Buy?
-
Home Users
Ideal for DIY enthusiasts and homeowners looking to create vacuum-sealed food storage or remove air from jars.
-
Small Businesses
A great solution for small food businesses needing reliable vacuum sealing for food preservation and packaging.
-
Hobbyists & Crafts
Perfect for crafters or hobbyists working with resin, molds, or other materials requiring air removal for best results.
-
Industrial Use
Not suitable for large-scale industrial applications requiring higher capacity or more powerful vacuum systems.
-
High-Volume Needs
Not intended for operations that demand frequent, continuous vacuum sealing, as it may not keep up with pace.
-
Professional Chefs
May not meet the rigorous standards needed for professional culinary environments that require specific equipment features.
Product Description
About This Item

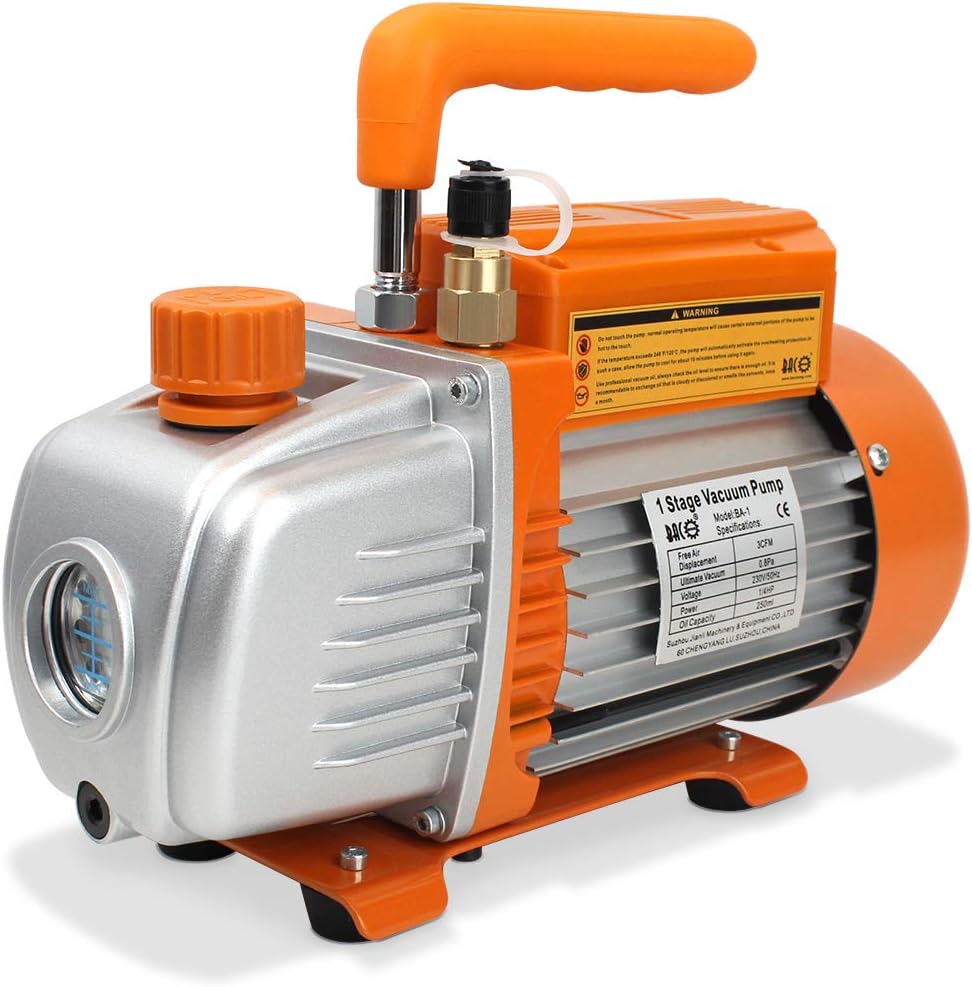

Introducing the BACOENG 19 Liter Vacuum Chamber Kit with 3 CFM Single Stage Vacuum Pump HVAC. This comprehensive kit is perfect for individuals in need of a high-quality vacuum chamber for various applications. The BACOENG 19 Liter Vacuum Chamber Kit features a powerful 3 CFM Single-Stage Rotary Vane gas vacuum pump.
With its high efficiency and low noise decibels, this pump ensures optimal performance while operating quietly. The heavy-duty aluminum alloy casing and direct drive maintenance-free motor contribute to its durability and straightforward starting. The kit includes a stainless steel base, acrylic lid, silicone gasket, vacuum gauge, and air manifold with valves. The 5ft hose provides ease of use and convenience in any setting.
This vacuum chamber kit is not only suitable for air conditioning applications, including automotive use, but it also excels in printing machinery, vacuum packing, gas analysis, hot-forming plastic, and laboratory settings in universities and colleges. Additionally, it can be used as a small oil booster pump, oil diffusion pump, or fore-pump of a molecular pump. Please note that the pump is not suitable for pumping gas that corrodes metal, reacts with pump oil, contains dust particles, or has high oxygen content and explosive toxic gases. It should not be used as a transfer pump from one container to another container. Upgrade your vacuum chamber capabilities with the BACOENG 19 Liter Vacuum Chamber Kit with 3 CFM Single Stage Vacuum Pump HVAC.
Experience unparalleled performance and reliability in your applications.
Have any Query? Chat with us
Customer Questions & Answers
-
Question:
Does it come with a UK Plug?
Answer: This item comes with a 2 Pin Euro Plug, but you can search for ASIN B07D7S4C6F for the 3 Pin UK Plug. -
Question:
What are the specifications of the pump?
Answer: The pumping speed is 3 CFM(85L/Min) and the ultimate vacuum is 0.8 Pa. -
Question:
What applications can this pump be used for?
Answer: It can be used for air conditioning, printing machinery, vacuum packing, gas-analysis, and more. -
Question:
Can the kit be used as delivered? Does the pump require an oil to buy separately? Should it be a specific oil?
Answer: This kit does not contain oil. You need to buy vacuum pump oil. -
Question:
What is the ultimate vacuum pressure this kit can create?
Answer: The kit can achieve a maximum vacuum of -0.09 MPa while being pumped. It will hold this for about 30 minutes once the pump is switched off. It will lose vacuum down to approximately -0.06 MPa over the next 2 hours. After 24 hours with the pump off, the vacuum will be almost entirely gone at -0.01 MPa. -
Question:
My vacuum pump constantly loses oil everywhere, I've wasted more oil just having it than using it. Is this normal? When purchased it, the box was oily.
Answer: I recommend sending it back if the pump is constantly losing oil. The box being oily upon purchase is not normal. -
Question:
Where can I get a plug adapter from? Didn't realize it didn't come with a plug to suit mains. Also, what do I do with the nipple on the vent plug? Remove it?
Answer: You can get a plug adapter from various retailers. You can also change the plug to a normal type. As for the nipple on the vent plug, you can remove it. -
Question:
What oil grade is needed for the pump, please?
Answer: Please use vacuum pump oil.
BACOENG BA1-P0306 Editorial Review
The BACOENG 6.8 Liter Vacuum Chamber Kit with 3 CFM Single Stage Vacuum Pump HVAC is a high-quality product that has received positive reception from customers. The kit does not come with vacuum pump oil, so customers will have to purchase it separately. The ultimate vacuum pressure that the kit can create is -0.09 MPa while being pumped. The vacuum can hold for about 30 minutes once the pump is switched off, and it will lose vacuum over time. After 24 hours with the pump off, the vacuum will be almost entirely gone. Customers have had some concerns and issues with the product. One customer complained about the vacuum pump Constantly losing oil, suggesting that this is not normal and advised returning the product. Another customer mentioned that the product comes with a European-style plug, which may require an adapter or a different plug for UK customers. Additionally, the kit came with an oily box, indicating potential leakage during transit. Overall, the BACOENG 6.8 Liter Vacuum Chamber Kit with 3 CFM Single Stage Vacuum Pump HVAC is a well-made piece of equipment that works effectively. Customers have found it useful for various applications, such as removing air bubbles from poured plaster in the lost wax mold-making process. However, there are some concerns about oil leakage and plug compatibility that may need to be addressed.
Customer Reviews & Ratings
286 customers ratings
-
5 Star
62%
-
4 Star
17%
-
3 Star
7%
-
2 Star
4%
-
1 Star
10%
Review this product
Share your thoughts with other customers
Pros
- High-quality and well-made
- Effective in removing air bubbles from poured plaster
- Superb packaging
Cons
- Kit does not come with vacuum pump oil
Product Price History
Important information
- Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.
- Not all the products listed on Ubuy are for sale, as Ubuy is a global search engine. Products are subject to export/trade regulations.
TTD 1313
Order now and get it around Thursday, July 02
This item is not restrict in my country.(Please click on above link if this item is not restrict in your country, So our team will review and allow.)
QTY:
Only 13 items left in stock.
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Fastest cross-border delivery
Features & Benefits
- 2 Pin Euro Plug (3 Pin UK Plug available)
- Specifications: Pumping speed: 3 CFM(85L/Min), Ultimate vacuum: 0.8 Pa
- Chamber Size: Diameter:10 inches/25cm; Height: 15 inches/38cm (19L Vacuum Chamber)
- Features: 3 CFM Single-Stage Rotary Vane gas vacuum pump
- Applications: Air Conditioning, Printing Machinery, Vacuum Packing, Gas-analysis, etc.
- Not suitable for pumping gas with chemical reactions to pump oil, high oxygen content, etc.
