RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
genuine image
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
Smooth high-speed operation, high repetitive positioning accuracy, large clamping force, suitable for automated production.
RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver
Item #: 181371603

RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed

Item #: 181371603

TTD 4519

Price Details

Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )

*All items will import from US

0 ratings Write a review
In stock
us Imported from USA store

QTY:

Only 16 items left in stock.
Order now and get it around Saturday, June 27
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
Smooth high-speed operation, high repetitive positioning accuracy, large clamping force, suitable for automated production.
U-Care Warranty:
None
Select a Plan
fast shipping

Fast
Shipping

free return

Free
Return*

secure packaging

Secure Packaging

100% original products

100% Original Products

pci-dss

PCI DSS Compliance

iso certified

ISO 27001 Certified

paypal payment
visa payment
mastercard payment

What Stands Out

Precision Engineering
The K11 rotary head enhances milling accuracy, ensuring precise cuts and superior quality in complex projects, addressing common issues faced in standard CNC routers.
High Torque Power
Equipped with a Nema34 4.5N.m servo motor, this machine delivers exceptional torque, making it ideal for heavy-duty tasks that require robust and reliable power.
Versatile Usage
The 4th axis capability allows for intricate designs and multitasking, making it suitable for a wide range of applications from engraving to complex three-dimensional milling.

Product Details

Shop RATTMMOTOR CNC Router Table Rotary K11-130mm Chuck Dividing Head Milling Machine Rotational Axis A 4th Axis Reducing Ratio 4:1+Nema34 4.5N.m Closed Loop Servo Motor+2HSS86 Servo Driver online at a best price in Trinidad and Tobago. B0FK1MCHP8
  • ✅【CNC 4th axis】Product Model: 5M-H100-4-130A(B); Chuck type: K11-130mm 3-jaw centring chuck; Centre height: 100MM; Total height: 165MM; Through-hole diameter: 30MM; Angle: 0.45 degree/step; Deceleration ratio: 4:1 (synchronous belt deceleration mode); Synchronous belt: 5M-450 (width 15MM).

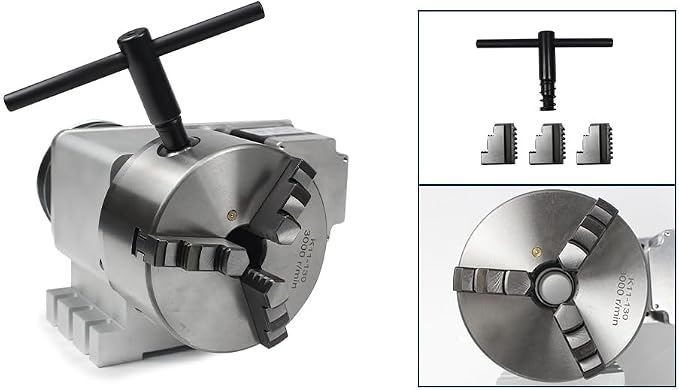

  • ✅【K11-130mm three-jaw centring chucks】Maximum input torque: 100N.m; Limit speed: 3000r/min; Maximum static clamping force: 17KN; Positive jaw clamp: 3-40mm; ; Positive jaw support: 40-130mm; Reverse Jaw Clamp: 40-120mm; Mounting screw: M8.

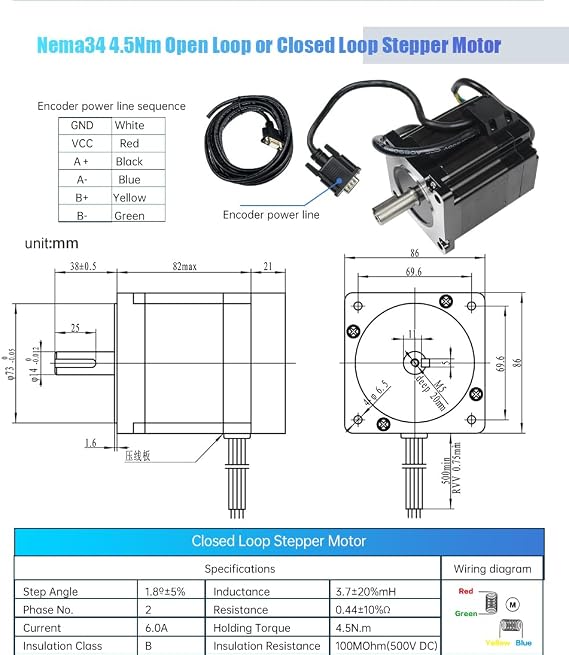

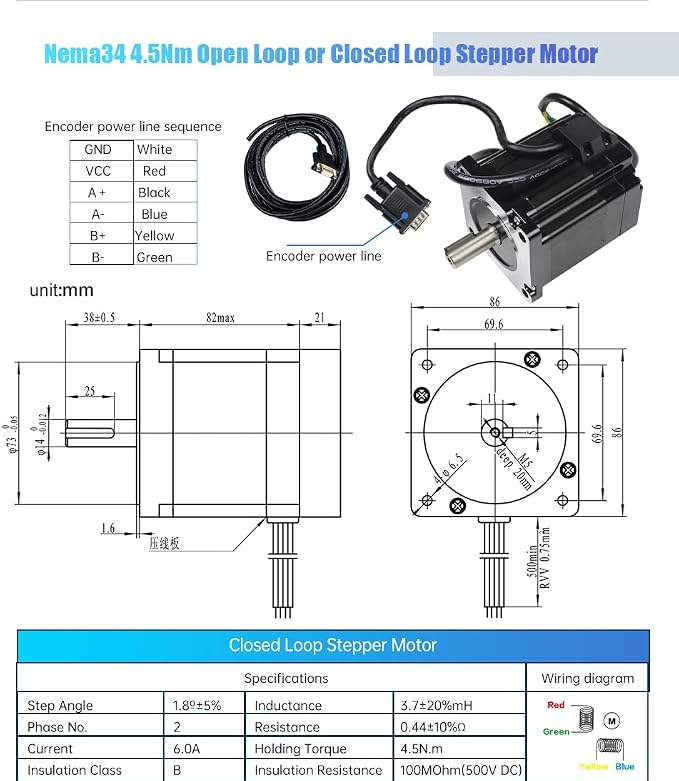

  • ✅【4.5N.m Closed Loop Servo Motor】Size:86x86x82mm; Current :6.0A; Phase:2; Step Angle(degrees):1.8 degree; Lead wire:4pcs; Holding Torque:450Ncm; Resistance:0.44±10%Ω; Inductance:3.7±20%mH; Insulation resistance:100MOhm(500V DC); Insulation Class:B.
  • ✅【2HHS86 Servo Motor Driver 】Voltage range: AC24-70V or DC30-100V; Peak current :Peak 8.0A; Logic input current:7-20mA; Frequency:0-200KHz; Encoder lines:1000; Insulation resistance:>=500MΩ; Operating temprature:0~50℃; Virbration:5.9m/s2Max.
  • ✅【Features】High tensile strength, local secondary hardening, surface fine grinding, rust and corrosion prevention; Dust-proof design, streamlined structure, easy maintenance; Use a variety of machinery and equipment, high clamping force, repeatable centring accuracy.
Item Weight15.77 Kilograms
Brand NameRATTMMOTOR
Model NumberK11-130MM-4.5NM
Manufacturer Part NumberK11-130NNEMA34-HU
ManufacturerRATTMMOTOR

Product Description

Have any Query? Chat with us

Customer Questions & Answers

  • Question: What is the maximum input torque of the chuck?

    Answer: The maximum input torque is 100N.m.
  • Question: What are the clamping range specifications?

    Answer: The positive jaw clamp range is 3-40mm, and the reverse jaw clamp range is 40-120mm.
  • Question: How does the product enhance operational efficiency?

    Answer: It combines high-speed operation and precision accuracy, making it ideal for automated production tasks.

RATTMMOTOR Power Tools Replacement Parts K11-130MM-4.5NM Editorial Review

No editorial reviews found

Customer Reviews & Ratings

5.0
1 customers ratings
  • 5 Star
    100%
  • 4 Star
    0%
  • 3 Star
    0%
  • 2 Star
    0%
  • 1 Star
    0%

Review this product

Share your thoughts with other customers

Product Price History

Important information

  • Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.
  • Not all the products listed on Ubuy are for sale, as Ubuy is a global search engine. Products are subject to export/trade regulations.

TTD 4519

Order now and get it around Saturday, June 27

QTY:

Only 16 items left in stock.
Secured transactionsecured transaction

Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.

Our Top Logistics Partners
  • fedex
  • dhl
Fastest cross-border delivery

Features & Benefits

  • Experience smooth high-speed operation.
  • Achieve high repetitive positioning accuracy.
  • Enjoy large clamping force for reliable performance.
  • Designed specifically for automated production environments.
  • Constructed with high-quality raw materials for durability.
  • Offers versatile compatibility with various machining tasks.
